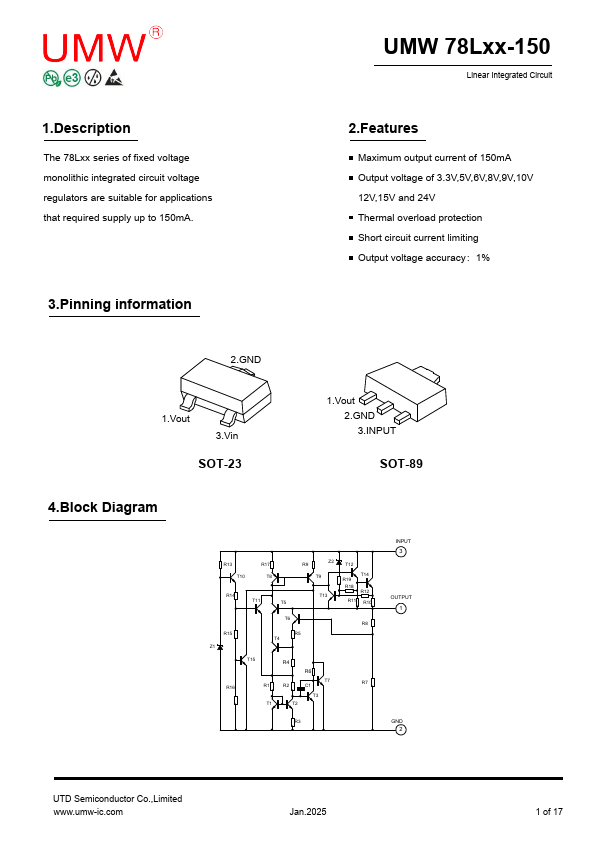

78L12-150, 78L33-150 Linear Integrated Circuit

1..
The 78Lxx series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 150mA.

78L33-150-UMW.pdf

78L12-150 Datasheet Preview — This datasheet PDF includes multiple part numbers: 78L12-150, 78L33-150. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

78L12-150, 78L33-150

Manufacturer:

UMW

File Size:

2.12 MB

Description:

Linear Integrated Circuit

Note:

This datasheet PDF includes multiple part numbers: 78L12-150, 78L33-150.
Please refer to the document for exact specifications by model.

Features

* Maximum output current of 150mA Output voltage of 3.3V,5V,6V,8V,9V,10V 12V,15V and 24V Thermal overload protection Short circuit current limiting Output voltage accuracyğ1% 2.GND 1.Vout 3.Vin SOT-23 1.Vout 2.GND 3.INPUT SOT-89 4.Block Diagram R13 T10 R17 T8 R14 T11 T5 R9 Z2 T9 T13 T1
