78L06-150 - Linear Integrated Circuit

Product Overview

Part number	78L06-150
Manufacturer	UMW
File Size	2.12 MB
Description	Linear Integrated Circuit
Datasheet	78L06-150 Datasheet
Note	This datasheet PDF includes multiple part numbers: 78L06-150, 78L33-150. Please refer to the document for exact specifications by model.

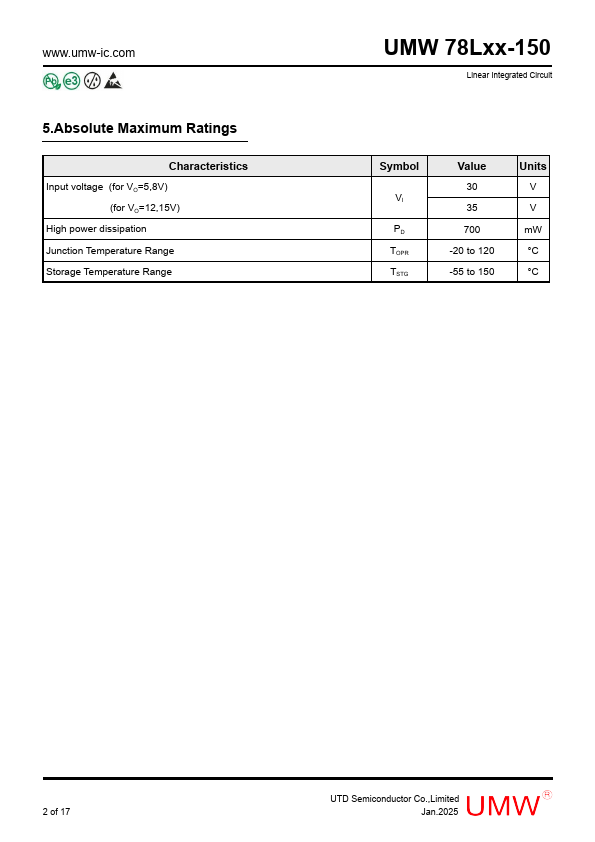

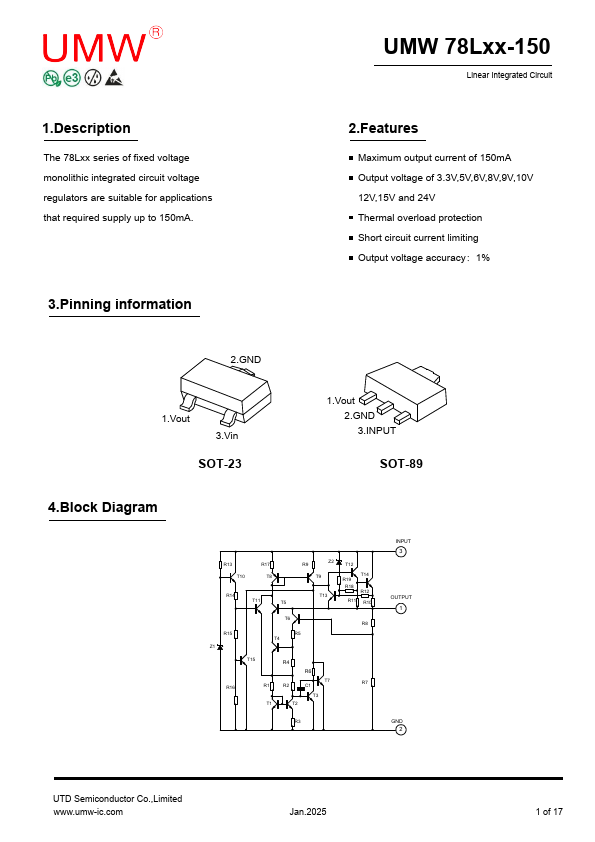

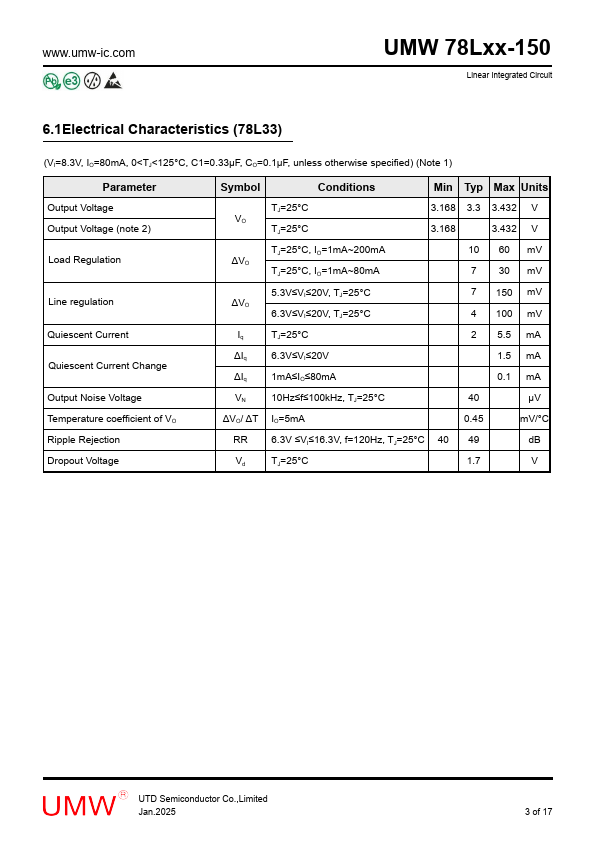

Additional preview pages of the 78L06-150 datasheet.

The 78Lxx series of fixed voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply up to 150mA.

Maximum output current of 150mA Output voltage of 3.3V,5V,6V,8V,9V,10V 12V,15V and 24V Thermal overload protection Short circuit current limiting Output voltage accuracyğ1% 2.GND 1.Vout 3.Vin SOT-23 1.Vout 2.GND 3.INPUT SOT-89 4.Block Diagram R13 T10 R17 T8 R14 T11 T5 R9 Z2 T9 T13 T12 T14 R19 R18 R12 R11 R10 T6 R8 R15 Z1 R5 T4 T15 R4 R6 T7 R16 R1 R2 C1 R7 T3 T1 T2 R3 INPUT 3 OUTPUT 1 GND 2 UTD Semiconductor Co. ,Limited www. umw-ic. com Jan.2025 1 of 17 www. umw-.
