ADC3582

Low Noise Ultra-low Power ADC

ADC3582 Features

* 18-bit 10/25/65 MSPS ADC

* Noise Floor: -160 dBFS/Hz

* Ultra Low Power with Optimized Power Scaling: 77 mW (10 MSPS) to 119 mW (65 MSPS)

* Latency: 1 clock cycle (1-wire SLVDS)

* Specified 18-bit, no missing codes

* INL/DNL: ±7/ ±0.7 LSB (typ)

ADC3582 General Description

The ADC358x is a low noise, ultra-low power 18-bit 65 MSPS high-speed ADC family. Designed for low noise performance, it delivers a noise spectral density of -160 dBFS/Hz combined with excellent linearity and dynamic range. The ADC358x offers very good DC precision together with IF sampling support.

ADC3582 Datasheet (5.58 MB)

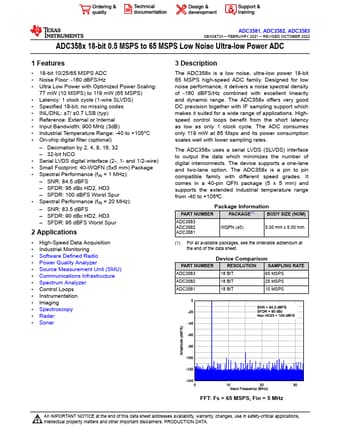

Preview of ADC3582 PDF

Datasheet Details

Part number:

ADC3582

Manufacturer:

Texas Instruments ↗

File Size:

5.58 MB

Description:

Low noise ultra-low power adc.
ADC3581, ADC3582, ADC3583 SBAS873A

* FEBRUARY 2021

* REVISED OCTOBER 2022 ADC358x 18-bit 0.5 MSPS to 65 MSPS Low Noise Ultra-low Power.
