ADC3581 - Low Noise Ultra-low Power ADC

General Description

The ADC358x is a low noise, ultra-low power 18-bit 65 MSPS high-speed ADC family.

Designed for low noise performance, it delivers a noise spectral density of -160 dBFS/Hz combined with excellent linearity and dynamic range.

Key Features

  • 18-bit 10/25/65 MSPS ADC.
  • Noise Floor: -160 dBFS/Hz.
  • Ultra Low Power with Optimized Power Scaling: 77 mW (10 MSPS) to 119 mW (65 MSPS).
  • Latency: 1 clock cycle (1-wire SLVDS).
  • Specified 18-bit, no missing codes.
  • INL/DNL: ±7/ ±0.7 LSB (typ).
  • Reference: External or Internal.
  • Input Bandwidth: 900 MHz (3dB).
  • Industrial Temperature Range: -40 to +105°C.
  • On-chip digital filter (optional).
  • Decimation by 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADC3511 A/D Converter National Semiconductor
ADC300 Single & Dual Output DC/DC Converters MPS Industries
ADC3000 (ADC1000 - ADC4050) Custom Multi Element Silicon Photodiodes Advanced Detector
ADC301 Single & Dual Output DC/DC Converters MPS Industries
ADC302 Single & Dual Output DC/DC Converters MPS Industries

Other Datasheets by Texas Instruments

Part Number Description
ADC3582 Low Noise Ultra-low Power ADC
ADC3583 Low Noise Ultra-low Power ADC
ADC3544 Low Power ADC
ADC3568 16-Bit 250MSPS and 500MSPS Analog-to-Digital Converter
ADC3569 16-Bit 250MSPS and 500MSPS Analog-to-Digital Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

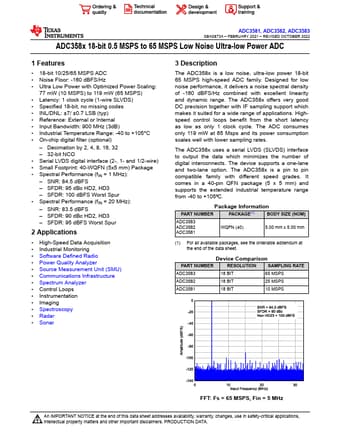

ADC3581, ADC3582, ADC3583 SBAS873A – FEBRUARY 2021 – REVISED OCTOBER 2022 ADC358x 18-bit 0.5 MSPS to 65 MSPS Low Noise Ultra-low Power ADC 1 Features • 18-bit 10/25/65 MSPS ADC • Noise Floor: -160 dBFS/Hz • Ultra Low Power with Optimized Power Scaling: 77 mW (10 MSPS) to 119 mW (65 MSPS) • Latency: 1 clock cycle (1-wire SLVDS) • Specified 18-bit, no missing codes • INL/DNL: ±7/ ±0.7 LSB (typ) • Reference: External or Internal • Input Bandwidth: 900 MHz (3dB) • Industrial Temperature Range: -40 to +105°C • On-chip digital filter (optional) – Decimation by 2, 4, 8, 16, 32 – 32-bit NCO • Serial LVDS digital interface (2-, 1- and 1/2-wire) • Small Footprint: 40-WQFN (5x5 mm) Package • Spectral Performance (fIN = 1 MHz): – SNR: 84.
