ADS1278-EP - 24-Bit ADC

Texas Instruments

📥 Download Datasheet

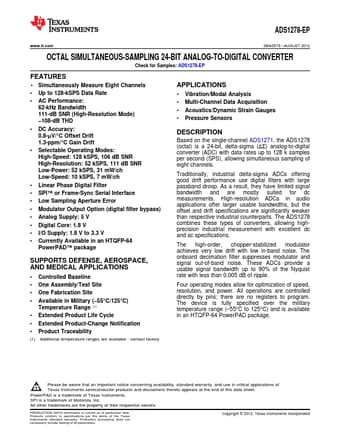

ADS1278-EP Datasheet Preview — Preview of ADS1278-EP PDF

Datasheet Details

Part number: ADS1278-EP
Manufacturer: Texas Instruments ↗
File Size: 1.46 MB
Datasheet: ADS1278-EP-etcTI.pdf
Description: 24-Bit ADC

ADS1278-EP Product details

Description

Based on the single-channel ADS1271, the ADS1278 (octal) is a 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) with data rates up to 128 k samples per second (SPS), allowing simultaneous sampling of eight channels..

Features

1.
234 Simultaneously Measure Eight Channels.
Up to 128-kSPS Data Rate.
AC Performance: 62-kHz Bandwidth 111-dB SNR (High-Resolution Mode).
108-dB THD.
DC Accuracy: 0.8-μV/°C Offset Drift 1.3-ppm/°C Gain Drift.
Selectable Operating Modes: High-Speed: 128 kSPS, 106 dB SNR High-Resolution: 52 kSPS, 111 dB SNR Low-Power: 52 kSPS, 31 mW/ch Low-Speed: 10 kSPS, 7 mW/ch.
Linear Phase Digital Filter.
SPI™ or Frame-Sync Serial Interfac.
