ADS127L11

Delta-Sigma ADC

ADS127L11 Features

* Programmable data rate:

* Up to 400 kSPS (wideband filter)

* Up to 1.067 MSPS (low-latency filter)

* Selectable digital filter:

* Wideband or low-latency

* AC accuracy with dc precision:

* Dynamic range: 111.5 dB (200 kSPS)

* THD:

ADS127L11 General Description

The ADS127L11 is a 24-bit, delta-sigma (ΔΣ), analogto-digital converter (ADC) with data rates up to 400 kSPS using the wideband filter and up to 1067 kSPS using the low-latency filter. The device offers an excellent combination of ac performance and dc precision with low power consumption (18.6 mW .

ADS127L11 Datasheet (4.03 MB)

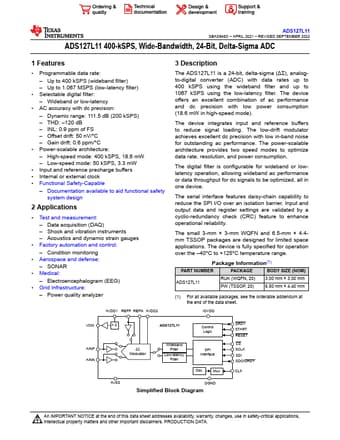

Preview of ADS127L11 PDF

Datasheet Details

Part number:

ADS127L11

Manufacturer:

Texas Instruments ↗

File Size:

4.03 MB

Description:

Delta-sigma adc.
