ADS8688, ADS8684 - SAR ADC

ADS8688 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design ADS8684, ADS8688 SBAS582C * JULY 2.
The ADS8684 and ADS8688 are 4- and 8-channel, integrated data acquisition systems based on a 16-bit successive approximation (SAR) analog-to-digital c.

ADS8688 Features

* 1 16-Bit ADCs with Integrated Analog Front-End
* 4-, 8-Channel MUX with Auto and Manual Scan
* Channel-Independent Programmable Input Ranges:
* Bipolar: ±10.24 V, ±5.12 V, ±2.56 V
* Unipolar: 10.24 V, 5.12 V
* 5-V Analog Supply: 1.65-V to 5-V I/O Supp

ADS8688 Applications

* Power Automation
* Protection Relays

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ADS8688, ADS8684. Please refer to the document for exact specifications by model.

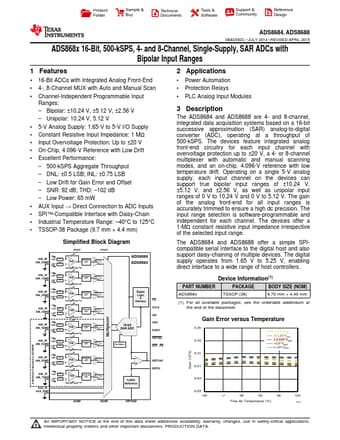

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ADS8688, ADS8684
Manufacturer
Texas Instruments ↗
File Size
2.80 MB
Datasheet
ADS8684-etcTI.pdf
Description
SAR ADC
Note
This datasheet PDF includes multiple part numbers: ADS8688, ADS8684.
Please refer to the document for exact specifications by model.
