AM2732-Q1 - Microcontrollers

This page provides the datasheet information for the AM2732-Q1, a member of the AM2732 Microcontrollers family.

Datasheet Summary

Description

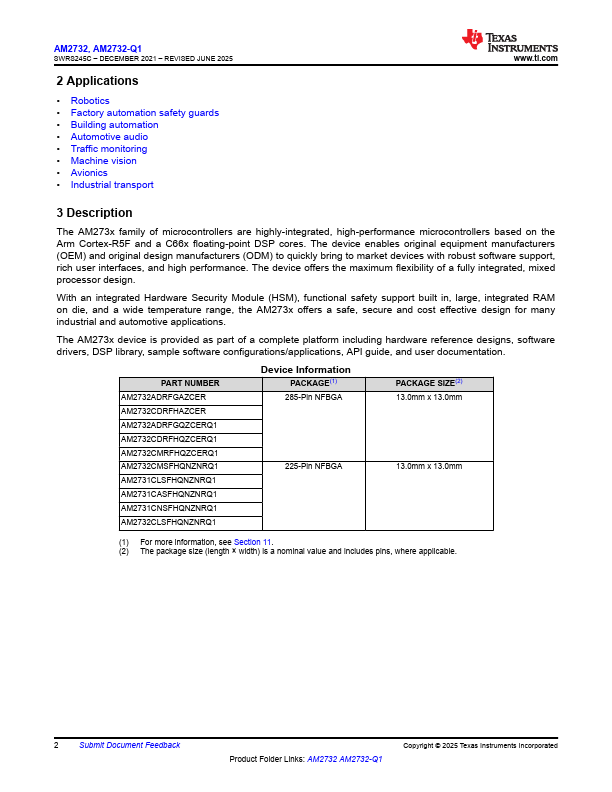

The AM273x family of microcontrollers are highly-integrated, high-performance microcontrollers based on the Arm Cortex-R5F and a C66x floating-point DSP cores.

Features

  • Processor Cores:.
  • Dual-core Arm® Cortex®-R5F MCU subsystem operating up to 400MHz, highly-integrated for realtime processing.
  • Dual-core Arm® Cortex®-R5F cluster supports dual-core and single-core operation.
  • 32KB I-Cache and 32KB D-Cache per R5F core with SECDED ECC on all memories.
  • Single-core: 128KB TCM per cluster (128KB TCM per R5F core).
  • Dual-core: 128KB TCM per cluster (64KB TCM per R5F core).
  • C66x DSP core.
  • Single core, 32-bit,.

📥 Download Datasheet

Datasheet preview – AM2732-Q1

Datasheet Details

Part number AM2732-Q1
Manufacturer Texas Instruments
File Size 6.96 MB
Description Microcontrollers
Datasheet download datasheet AM2732-Q1 Datasheet
Additional preview pages of the AM2732-Q1 datasheet.

📁 Similar Datasheet

  • Am2732 - 4096 x 8-Bit UV EPROM (AMD)
  • AM2732B - 2048 x 8 Bit / 4096 x 8 Bit EPROM (AMD)
  • Am2708 - EROM (AMD)
  • AM27128A - (AM2764A - AM27256) 8-Bit OTPROM (AMD)
  • AM2716 - 2K x 8-Bit UV EPROM (AMD)
  • AM2716B - (AM2732B) 2048 x 8 Bit EPROM (AMD)
  • AM2716DC - 2K X 8-Bit UV EPROM (AMD)
  • AM27256 - (AM2764A - AM27256) 8-Bit OTPROM (AMD)
  • AM2729-110 - S-BAND RADAR APPLICATIONS RF & MICROWAVE TRANSISTORS (STMicroelectronics)
  • AM2729-125 - RF & MICROWAVE TRANSISTORS S-BAND RADAR APPLICATIONS (STMicroelectronics)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

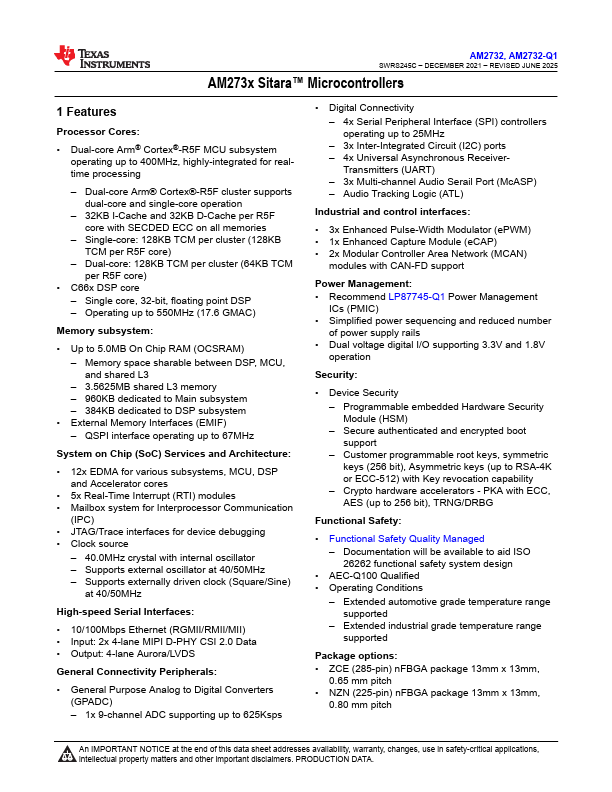

AM2732, AM2732-Q1 SWRS245C – DECEMBER 2021 – REVISED JUNE 2025 AM273x Sitara™ Microcontrollers 1 Features Processor Cores: • Dual-core Arm® Cortex®-R5F MCU subsystem operating up to 400MHz, highly-integrated for realtime processing – Dual-core Arm® Cortex®-R5F cluster supports dual-core and single-core operation – 32KB I-Cache and 32KB D-Cache per R5F core with SECDED ECC on all memories – Single-core: 128KB TCM per cluster (128KB TCM per R5F core) – Dual-core: 128KB TCM per cluster (64KB TCM per R5F core) • C66x DSP core – Single core, 32-bit, floating point DSP – Operating up to 550MHz (17.6 GMAC) Memory subsystem: • Up to 5.0MB On Chip RAM (OCSRAM) – Memory space sharable between DSP, MCU, and shared L3 – 3.
