AM2431, AM2434 - Sitara Microcontrollers

Name: AM2431
SKU: AM2431-1564914

Texas Instruments

The AM2431 by Texas Instruments is a Sitara Microcontrollers. Below is the official datasheet preview.

Datasheet Details

Part number	AM2431, AM2434
Manufacturer	Texas Instruments
File Size	5.42 MB
Description	Sitara Microcontrollers
Datasheet	AM2434-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: AM2431, AM2434. Please refer to the document for exact specifications by model.

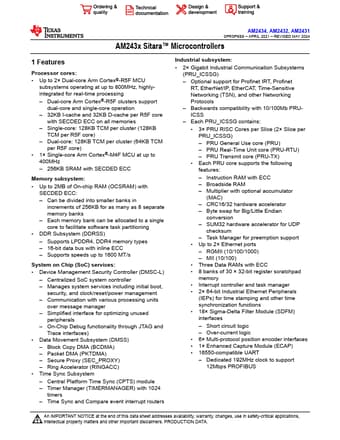

Additional preview pages of the AM2431 datasheet.

Processor cores:.
Up to 2× Dual-core Arm Cortex®-R5F MCU subsystems operating at up to 800MHz, highlyintegrated for real-time processing.
Dual-core Arm Cortex®-R5F clusters support dual-core and single-core operation.
32KB I-cache and 32KB D-cache per R5F core with SECDED ECC on all memories.
Single-core: 128KB TCM per cluster (128KB TCM per R5F core).
Dual-core: 128KB TCM per cluster (64KB TCM per R5F core).
1× Single-core Arm Cortex®-M4F MC.
