AM24LC08 - 2-Wire Serial 8K-Bit (1024 x 8) CMOS Electrically Erasable PROM

Datasheet Summary

Description

The AM24LC08 is a non-volatile, 8192-bit serial EEPROM with conforms to all specifications in I2C 2 wire protocol.

The whole memory can be disabled (Write Protected) by connecting the WP pin to Vcc.

This section of memory then becomes unalterable unless WP is switched to Vss.

Features

  • State- of- the- art architecture - Non-volatile data storage - Standard voltage and low voltage operation (Vcc = 2.7V to 5.5V) for AM24LC08.
  • 2-wire I2C serial interface - Provides bi-directional data transfer protocol.
  • 16-byte page write mode - Minimizes total write time per word.
  • Self-timed write-cycle (including auto-erase).
  • Durable and Reliable - 40 years data retention - Minimum of 1M write/erase cycles per word - Unlimited read cycles - ESD prote.

📥 Download Datasheet

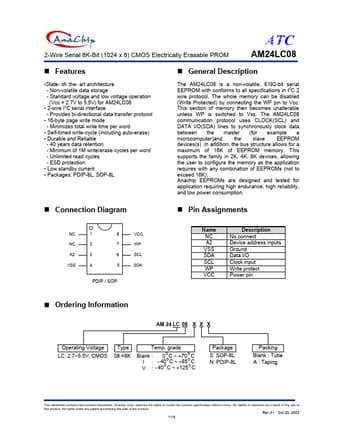

Datasheet preview – AM24LC08
