* This single-display module is suitable for cell phone application. The Main-LCD adopts one backlight with High brightness 4-lamps white LED. (1) Construction: 2.8” a-Si color TFT-LCD, White LED Backlight, and FPCB. (2) Main LCD : 2.1 Amorphous-TFT 2.8 inch display, transmissive, Normally white type,
AM240320M8TNQW-T00H Datasheet (1.12 MB)
AM240320M8TNQW-T00H
AMP DISPLAY
1.12 MB
Tft lcd module.

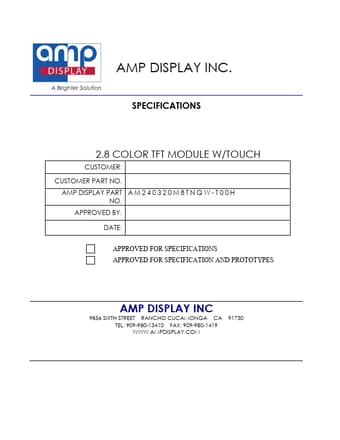

AMP DISPLAY INC.
SPECIFICATIONS
2.8 COLOR TFT MODULE W/TOUCH
CUSTOMER:
CUSTOMER PART NO. AMP DISPLAY PART A M 2 4 0 3 2 0 M 8 T N Q W - T 0 0 H NO. A.
