Am2401 - Dua11024-Bit Dynamic Shift Register

The Am9401 is a dual 1024 *bit dynamic shift register built using ion *implanted, N *channel, silicon gate MOS technology.

The device operates from a single +5 volt power supply and all inputs and outputs, including the clock, are directly TTL compatible.

Data is entered into the register o

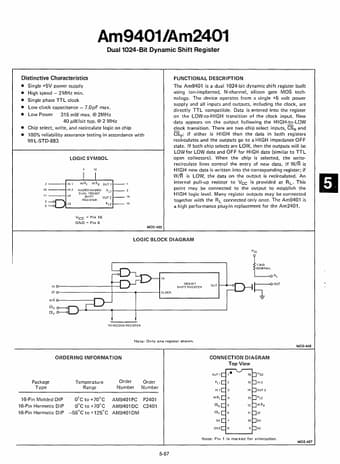

Am9401/Am2401 Dua11024-Bit Dynamic Shift Register Disti nctive Characteristics Single +5V power supply High speed - 2 MHz min.

Single phase TTL clock Low clock capacitance - 7.0 pF max.

Low Power 315 mW max.

@ 2MHz 40 /lW/bit typo @ 2 MHz Chip select, write, and recirculate logic on chip 100% reliability assurance testing in accordance with MI L STD 883 LOGIC SYMBOL 12 IN 1 W/R 1 W/R 2 OUT 1 15 11 14 13 FUNCTION
