AM625-Q1, AM625 Datasheet - Texas Instruments

AM625-Q1, AM625, Quad 64-bit Processors

AM62x Sitara™ Processors AM625, AM625-Q1, AM623, AM620-Q1 SPRSP58B * JUNE 2022 * REVISED JUNE 2023 1 .

datasheet Preview Page 1 from Datasheet4u.com

AM625-etcTI.pdf

AM625-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: AM625-Q1, AM625. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AM625-Q1, AM625

Manufacturer:

Texas Instruments ↗

File Size:

5.18 MB

Description:

Quad 64-bit Processors

Note:

This datasheet PDF includes multiple part numbers: AM625-Q1, AM625.
Please refer to the document for exact specifications by model.

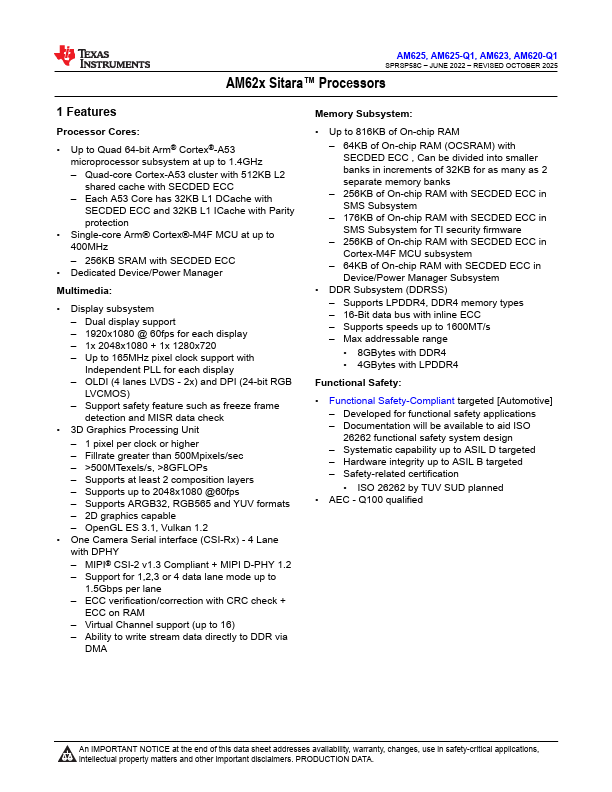

Features

* Processor Cores:
* Up to Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem at up to 1.4 GHz
* Quad-core Cortex-A53 cluster with 512KB L2 shared cache with SECDED ECC
* Each A53 Core has 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with Parity protection
* Sin

Applications

* Documentation will be available to aid IEC 61508 functional safety system design
* Systematic capability up to SIL 3 targeted
* Hardware Integrity up to SIL 2 targeted
* Safety-related certification
* IEC 61508 by TUV SUD planned
* Functional Safety-
