AM62A7-Q1, AM62A7 - 64-bit Processors

Texas Instruments

Datasheet Details

Part number	AM62A7-Q1, AM62A7
Manufacturer	Texas Instruments ↗
File Size	4.40 MB
Description	64-bit Processors
Datasheet	AM62A7-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: AM62A7-Q1, AM62A7. Please refer to the document for exact specifications by model.

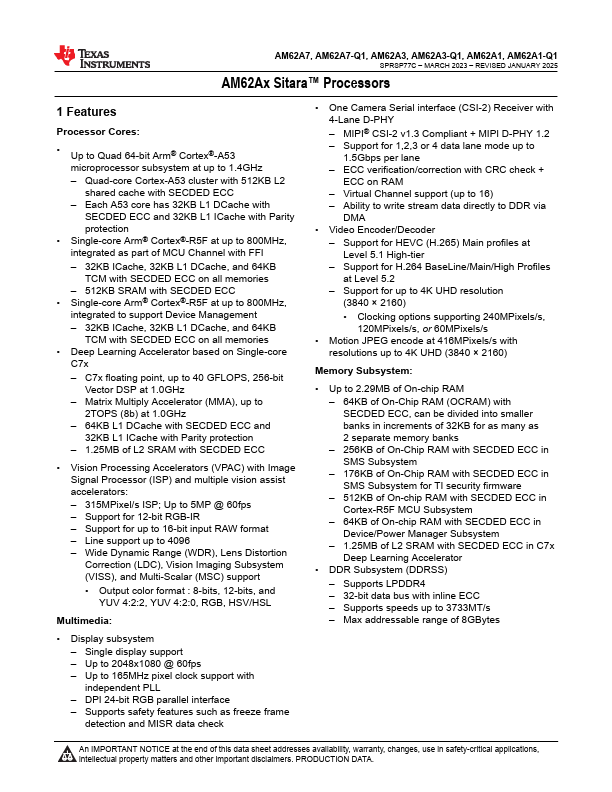

Processor Cores:.
Up to Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem at up to 1.4GHz.
Quad-core Cortex-A53 cluster with 512KB L2 shared cache with SECDED ECC.
Each A53 core has 32KB L1 DCache with SECDED ECC and 32KB L1 ICache with Parity protection.
Single-core Arm® Cortex®-R5F at up to 800MHz, integrated as part of MCU Channel with FFI.
32KB ICache, 32KB L1 DCache, and 64KB TCM with SECDED ECC on all memories.
512KB SRAM with SECDE.
