AMC1303M0520, AMC1303E0510 Datasheet - Texas Instruments

AMC1303M0520 Reinforced Isolated Delta-Sigma Modulators

The AMC1303 (AMC1303x0510, AMC1303x0520, AMC1303x2510, and AMC1303x2520) is a family of precision, delta-sigma (ΔΣ) modulators with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference. This barrier is certified to p.

AMC1303M0520 Features

* 1 Pin-compatible family optimized for shunt-resistorbased current measurements:

* ±50-mV or ±250-mV input voltage ranges

* Manchester coded or uncoded bistream options

* 10-MHz and 20-MHz clock options

* Excellent DC performance:

* Offset error: ±50 µ

AMC1303E0510-etcTI.pdf

This datasheet PDF includes multiple part numbers: AMC1303M0520, AMC1303E0510. Please refer to the document for exact specifications by model.

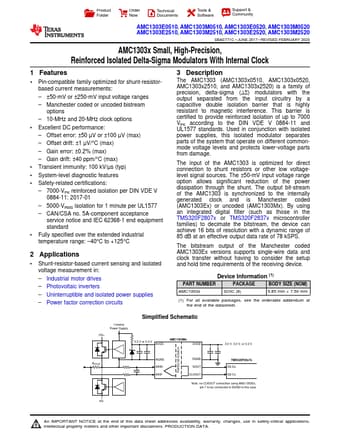

AMC1303M0520 Datasheet Preview Page 2 AMC1303M0520 Datasheet Preview Page 3

Datasheet Details

Part number:

AMC1303M0520, AMC1303E0510

Manufacturer:

Texas Instruments ↗

File Size:

1.77 MB

Description:

Reinforced isolated delta-sigma modulators.

Note:

This datasheet PDF includes multiple part numbers: AMC1303M0520, AMC1303E0510.
Please refer to the document for exact specifications by model.
