AMC1303E2510

Reinforced Isolated Delta-Sigma Modulators

Texas Instruments

AMC1303E2510 Features

* 1 Pin-compatible family optimized for shunt-resistorbased current measurements:

* ±50-mV or ±250-mV input voltage ranges

* Manchester coded or uncoded bistream options

* 10-MHz and 20-MHz clock options

* Excellent DC performance:

* Offset error: ±50 µ

AMC1303E2510 General Description

The AMC1303 (AMC1303x0510, AMC1303x0520, AMC1303x2510, and AMC1303x2520) is a family of precision, delta-sigma (ΔΣ) modulators with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference. This barrier is certified to p.

AMC1303E2510 Datasheet (1.77 MB)

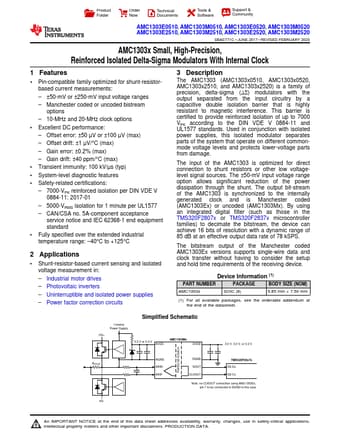

AMC1303E2510 Datasheet Preview — Preview of AMC1303E2510 PDF

Datasheet Details

Part number:

AMC1303E2510

Manufacturer:

Texas Instruments ↗

File Size:

1.77 MB

Description:

Reinforced isolated delta-sigma modulators.
Product Folder Order Now Technical Documents Tools & Software Support & Community AMC1303E0510, AMC1303M0510, AMC1303E0520, AMC1303M0520 AMC1303E.
