AMC1303E2520, AMC1303E0510, Reinforced Isolated Delta-Sigma Modulators

Product Folder Order Now Technical Documents Tools & Software Support & Community AMC1303E0510, AMC1303M0510, AMC1303E0520, AMC1303M0520 AMC1303E.
The AMC1303 (AMC1303x0510, AMC1303x0520, AMC1303x2510, and AMC1303x2520) is a family of precision, delta-sigma (ΔΣ) modulators with the output separat.

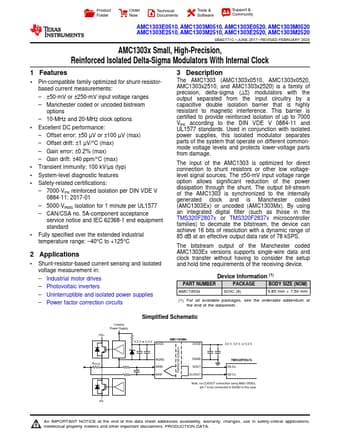

datasheet Preview Page 1 from Datasheet4u.com

AMC1303E0510-etcTI.pdf

AMC1303E2520 Datasheet Preview — This datasheet PDF includes multiple part numbers: AMC1303E2520, AMC1303E0510. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AMC1303E2520, AMC1303E0510

Manufacturer:

Texas Instruments ↗

File Size:

1.77 MB

Description:

Reinforced Isolated Delta-Sigma Modulators

Note:

This datasheet PDF includes multiple part numbers: AMC1303E2520, AMC1303E0510.
Please refer to the document for exact specifications by model.

Features

* 1 Pin-compatible family optimized for shunt-resistorbased current measurements:
* ±50-mV or ±250-mV input voltage ranges
* Manchester coded or uncoded bistream options
* 10-MHz and 20-MHz clock options
* Excellent DC performance:
* Offset error: ±50 µ

Applications

* Shunt-resistor-based current sensing and isolated voltage measurement in:
* Industrial motor drives
* Photovoltaic inverters
* Uninterruptible and isolated power supplies
