BQ24617

1- to 6-Cell Synchronous Buck Battery Charger Controller

BQ24617 Features

* 1 600-kHz NMOS-NMOS Synchronous buck converter

* Stand-alone charger support for li-ion or li-polymer

* 5-V to 28-V VCC Input operating range and supports 1- to 6-battery cells (BQ24610)

* 5-V to 24-V VCC Input operating range and supports 1- to 5-battery cells (BQ24

BQ24617 General Description

The BQ2461x is a highly integrated Li-ion, Li-polymer or Lead-acid switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with highaccuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regula.

BQ24617 Datasheet (3.42 MB)

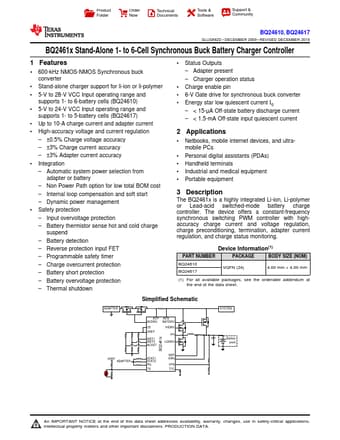

Preview of BQ24617 PDF

Datasheet Details

Part number:

BQ24617

Manufacturer:

Texas Instruments ↗

File Size:

3.42 MB

Description:

1- to 6-cell synchronous buck battery charger controller.
Product Folder Order Now Technical Documents Tools & Software Support & Community BQ24610, BQ24617 SLUS892D

* DECEMBER 2009

* REV.
