bq24620

Lithium Phosphate Battery Charger

bq24620 Features

* 2 Applications

* 1 300-kHz NMOS-NMOS Synchronous Buck Converter

* Stand-Alone Charger Designed Specifically for Lithium Phosphate

* 5-V to 28-V VCC Operating Range, Supports 1 to 7 Battery Cells

* High-Accuracy Voltage and Current Regulation

* ±0.5% Charge Vo

bq24620 General Description

The bq24620 device is a highly integrated lithium phosphate switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, and charge status monitoring.

bq24620 Datasheet (2.26 MB)

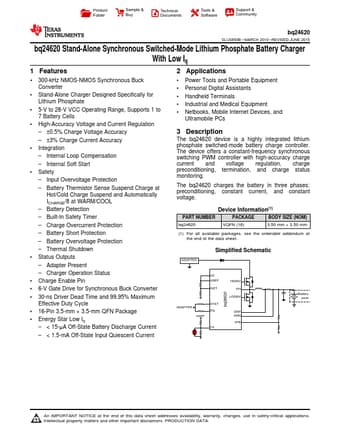

Preview of bq24620 PDF

Datasheet Details

Part number:

bq24620

Manufacturer:

Texas Instruments ↗

File Size:

2.26 MB

Description:

Lithium phosphate battery charger.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community bq24620 SLUS893B

* MARCH 2010

* REVISED JUNE.
