BQ79600-Q1

Automotive SPI/UART Communication Interface Functional-Safety Compliant

BQ79600-Q1 Features

* Qualified for automotive applications

* AEC-Q100 Qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature range

* Device HBM ESD classification level 2

* Device CDM ESD classification level C4B

BQ79600-Q1 General Description

The BQ79600-Q1 is a communication (bridge) IC designed to interface between a microcontroller (MCU) and TI battery monitoring ICs, for example the BQ7961X-Q1. The information from the MCU is translated by the device to signals recognized by TI’s battery management daisy chain protocol, and transmit.

BQ79600-Q1 Datasheet (3.78 MB)

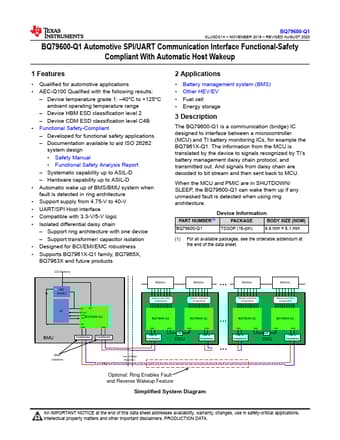

Preview of BQ79600-Q1 PDF

Datasheet Details

Part number:

BQ79600-Q1

Manufacturer:

Texas Instruments ↗

File Size:

3.78 MB

Description:

Automotive spi/uart communication interface functional-safety compliant.
www.ti.com BQ79600-Q1 SLUSDS1A

* NOVEMBER 2019

* REVISEDBQAU7G9U6S0T02-Q0210 SLUSDS1A

* NOVEMBER 2019

* REVISED AUGUS.
