BQ79614-Q1, BQ79616-Q1 Datasheet - Texas Instruments

BQ79614-Q1 Functional Safety-Compliant Automotive Balancer and Integrated Hardware Protector

BQ79612-Q1, BQ79614-Q1, BQ79616-Q1 and BQ79616H-Q1 provide high-accuracy cell voltage measurements in less than 200 μs for 12S, 14S and 16S battery modules in high-voltage battery management systems in HEV/EV. The family of monitors offers different channel options in the same package type, providi.

BQ79614-Q1 Features

* Qualified for automotive applications

* AEC-Q100 Qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature range

* Device HBM ESD classification level 2

* Device CDM ESD classification level C4B

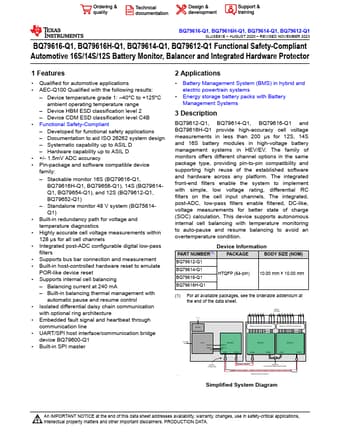

BQ79616-Q1-etcTI.pdf

BQ79614-Q1 Datasheet Preview — This datasheet PDF includes multiple part numbers: BQ79614-Q1, BQ79616-Q1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BQ79614-Q1, BQ79616-Q1

Manufacturer:

Texas Instruments ↗

File Size:

5.24 MB

Description:

Functional safety-compliant automotive balancer and integrated hardware protector.

Note:

This datasheet PDF includes multiple part numbers: BQ79614-Q1, BQ79616-Q1.
Please refer to the document for exact specifications by model.
