CC2340R2 - 2.4GHz Wireless MCU

This page provides the datasheet information for the CC2340R2, a member of the CC2340R5 2.4GHz Wireless MCU family.

Datasheet Summary

Description

Retail automation & payment electronic point of sale Electronic shelf label Grid infrastructure Smart meters water meter, gas meter, electricity meter, and heat cost allocators Grid communications wireless communication

Features

  • Wireless microcontroller.
  • Optimized 48MHz Arm® Cortex®-M0+ processor.
  • Up to 512KB of in-system programmable flash.
  • 12KB of ROM for bootloader and drivers.
  • Up to 64KB of ultra-low leakage SRAM. Full RAM retention in standby mode.
  • 2.4GHz RF transceiver compatible with Bluetooth® 5.3 Low Energy and IEEE 802.15.4 PHY and MAC.
  • Integrated balun.
  • Supports over-the-air upgrade (OTA).
  • Serial wire debug (SWD) Low power consumption.

📥 Download Datasheet

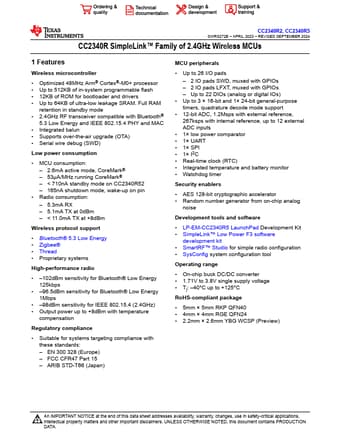

Datasheet preview – CC2340R2

Datasheet Details

Part number CC2340R2
Manufacturer Texas Instruments
File Size 3.89 MB
Description 2.4GHz Wireless MCU
Datasheet download datasheet CC2340R2 Datasheet
Additional preview pages of the CC2340R2 datasheet.
