CC2340R5 - 2.4GHz Wireless MCU

Datasheet Summary

Description

Retail automation & payment electronic point of sale Electronic shelf label Grid infrastructure Smart meters water meter, gas meter, electricity meter, and heat cost allocators Grid communications wireless communication

Features

  • Wireless microcontroller.
  • Optimized 48MHz Arm® Cortex®-M0+ processor.
  • Up to 512KB of in-system programmable flash.
  • 12KB of ROM for bootloader and drivers.
  • Up to 64KB of ultra-low leakage SRAM. Full RAM retention in standby mode.
  • 2.4GHz RF transceiver compatible with Bluetooth® 5.3 Low Energy and IEEE 802.15.4 PHY and MAC.
  • Integrated balun.
  • Supports over-the-air upgrade (OTA).
  • Serial wire debug (SWD) Low power consumption.

📥 Download Datasheet

Datasheet preview – CC2340R5

Datasheet Details

Part number CC2340R5
Manufacturer Texas Instruments
File Size 3.89 MB
Description 2.4GHz Wireless MCU
Datasheet download datasheet CC2340R5 Datasheet
Additional preview pages of the CC2340R5 datasheet.

📁 Similar Datasheet

  • CC2400 - 2.4-GHz Low-Power RF Transceiver (Chipcon)
  • CC2403020N - Super Fast Recovery Dual Diode Modules 20 Amperes/300-600 Volts (Powerex Power Semiconductors)
  • CC2403500N - Super Fast Recovery Dual Diode Modules 50 Amperes/300-600 Volts (Powerex Power Semiconductors)
  • CC2406020N - Super Fast Recovery Dual Diode Modules 20 Amperes/300-600 Volts (Powerex Power Semiconductors)
  • CC240650 - Fast Recovery Dual Diode Modules 50 Amperes/600-1200 Volts (Powerex Power Semiconductors)
  • CC2406500N - Super Fast Recovery Dual Diode Modules 50 Amperes/300-600 Volts (Powerex Power Semiconductors)
  • CC241250 - Fast Recovery Dual Diode Modules 50 Amperes/600-1200 Volts (Powerex Power Semiconductors)
  • CC2420 - First Single-chip 2.4 GHZ Ieee 802.15.4 Compliant And Zigbeetm Ready RF Transceiver (Chipcon)
  • CC2430 - A True System-on-Chip solution (Chipcon)
  • CC2431 - System-on-Chip for 2.4 GHz ZigBee / IEEE 802.15.4 (Chipcon)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

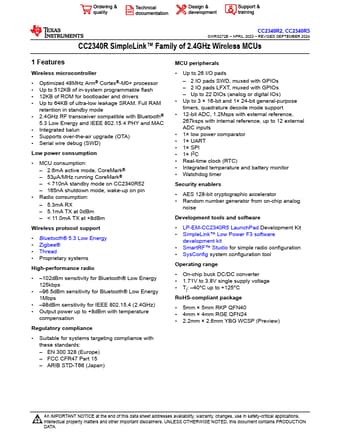

CC2340R2, CC2340R5 SWRS272E – APRIL 2023 – REVISED SEPTEMBER 2024 CC2340R SimpleLink™ Family of 2.4GHz Wireless MCUs 1 Features Wireless microcontroller • Optimized 48MHz Arm® Cortex®-M0+ processor • Up to 512KB of in-system programmable flash • 12KB of ROM for bootloader and drivers • Up to 64KB of ultra-low leakage SRAM. Full RAM retention in standby mode • 2.4GHz RF transceiver compatible with Bluetooth® 5.3 Low Energy and IEEE 802.15.4 PHY and MAC • Integrated balun • Supports over-the-air upgrade (OTA) • Serial wire debug (SWD) Low power consumption • MCU consumption: – 2.6mA active mode, CoreMark® – 53μA/MHz running CoreMark® – < 710nA standby mode on CC2340R52 – 165nA shutdown mode, wake-up on pin • Radio consumption: – 5.3mA RX – 5.1mA TX at 0dBm – < 11.
