CD4023BE, CD4023B Datasheet - Texas Instruments

CD4023BE CMOS NAND Gates

Data sheet acquired from Harris Semiconductor SCHS021D Revised September 2003 The CD4011B, CD4012B, and CD4023B types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PWR suffix). The CD4011B and CD4023B types also are supplied in 14-lead thin shrink small-outline packages (PW suffix). Copyright © 20.

CD4023B-etcTI.pdf

This datasheet PDF includes multiple part numbers: CD4023BE, CD4023B. Please refer to the document for exact specifications by model.

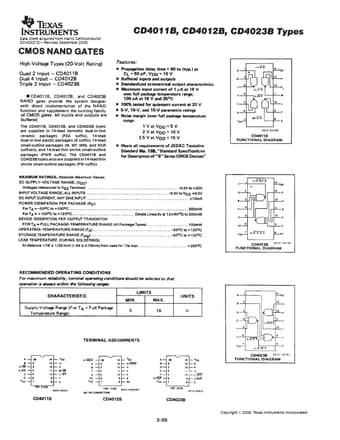

CD4023BE Datasheet Preview Page 2 CD4023BE Datasheet Preview Page 3

Datasheet Details

Part number:

CD4023BE, CD4023B

Manufacturer:

Texas Instruments ↗

File Size:

1.32 MB

Description:

Cmos nand gates.

Note:

This datasheet PDF includes multiple part numbers: CD4023BE, CD4023B.
Please refer to the document for exact specifications by model.
