CD54AC244

Octal Buffer/Line Drivers

CD54AC244 Features

* SCR-Latch-up-resistant CMOS process and circuit design

* Speed of bipolar FAST /AS/S with significantly reduced power consumption

* Balanced propagation delays

* AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply

* ±24mA

CD54AC244 General Description

The RCA CD54/74AC240, CD54/74AC241, and CD54/74AC244 and the CD54/74ACT240, CD54/74ACT241, and CD54/74ACT244 3-state octal buffer/line drivers use the RCA ADVANCED CMOS technology. PART NUMBER CDx4AC/ACT24x Device Information PACKAGE(1) PACKAGE SIZE(2) BODY SIZE(3) DW (SOIC, 20) 12.8mm x 10.3.

CD54AC244 Datasheet (1.33 MB)

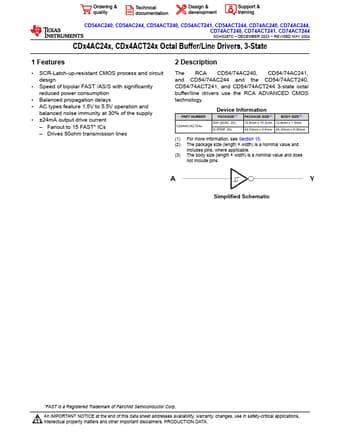

Preview of CD54AC244 PDF

Datasheet Details

Part number:

CD54AC244

Manufacturer:

Texas Instruments ↗

File Size:

1.33 MB

Description:

Octal buffer/line drivers.
CD54AC240, CD54AC244, CD54ACT240, CD54ACT241, CD54ACT244, CD74AC240, CD74AC244, CD74ACT240, CD74ACT241, CD74ACT244 SCHS287C

* DECEMBER 2023
