CD54AC273

Octal D Flip-Flop

CD54AC273 Features

* Buffered Inputs

* Typical Propagation Delay - 6.5ns at VCC = 5V, TA = 25oC, CL = 50pF

* Exceeds 2kV ESD Protection MIL-STD-883, Method 3015

* SCR-Latchup-Resistant CMOS Process and Circuit Design

* Speed of Bipolar FAST™/AS/S with Significantly Reduced Power

CD54AC273 General Description

The ’AC273 and ’ACT273 devices are octal D-type flip-flops with reset that utilize advanced CMOS logic technology. Information at the D input is transferred to the Q output on the positive-going edge of the clock pulse. All eight flip-flops are controlled by a common clock (CP) and a common reset (MR). .

CD54AC273 Datasheet (968.01 KB)

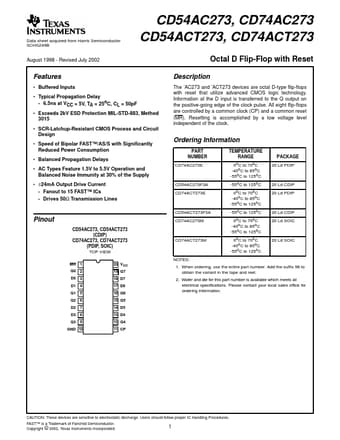

Preview of CD54AC273 PDF

Datasheet Details

Part number:

CD54AC273

Manufacturer:

Texas Instruments ↗

File Size:

968.01 KB

Description:

Octal d flip-flop.
Data sheet acquired from Harris Semiconductor SCHS249B August 1998 - Revised July 2002 CD54AC273, CD74AC273 CD54ACT273, CD74ACT273 Octal D Flip-Flop .
