CD54ACT240, CD54AC240 - Octal Buffer/Line Drivers

Texas Instruments

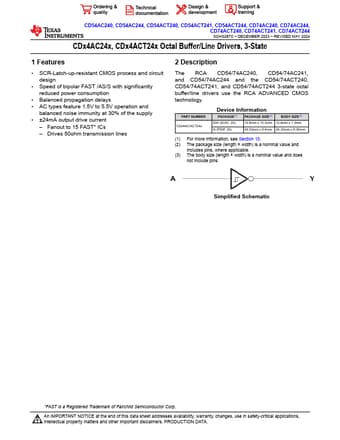

CD54ACT240 Datasheet Preview — This datasheet PDF includes multiple part numbers: CD54ACT240, CD54AC240. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CD54ACT240, CD54AC240
Manufacturer	Texas Instruments ↗
File Size	1.33 MB
Description	Octal Buffer/Line Drivers
Datasheet	CD54AC240-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: CD54ACT240, CD54AC240. Please refer to the document for exact specifications by model.

CD54ACT240 Product details

Description

The RCA CD54/74AC240, CD54/74AC241, and CD54/74AC244 and the CD54/74ACT240, CD54/74ACT241, and CD54/74ACT244 3-state octal buffer/line drivers use the RCA ADVANCED CMOS technology.

Features

SCR-Latch-up-resistant CMOS process and circuit design.
Speed of bipolar FAST /AS/S with significantly reduced power consumption.
Balanced propagation delays.
AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply.
±24mA output drive current.
Fanout to 15 FAST.
ICs.
Drives 50ohm transmission lines 2.
