CD54ACT244 Octal Buffer/Line Drivers

The RCA CD54/74AC240, CD54/74AC241, and CD54/74AC244 and the CD54/74ACT240, CD54/74ACT241, and CD54/74ACT244 3-state octal buffer/line drivers use the RCA ADVANCED CMOS technology. PART NUMBER CDx4AC/ACT24x Device Information PACKAGE(1) PACKAGE SIZE(2) BODY SIZE(3) DW (SOIC, 20) 12.8mm x 10.3.

CD54ACT244 Features

* SCR-Latch-up-resistant CMOS process and circuit design

* Speed of bipolar FAST /AS/S with significantly reduced power consumption

* Balanced propagation delays

* AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply

* ±24mA

CD54AC240-etcTI.pdf

This datasheet PDF includes multiple part numbers: CD54ACT244, CD54AC240. Please refer to the document for exact specifications by model.

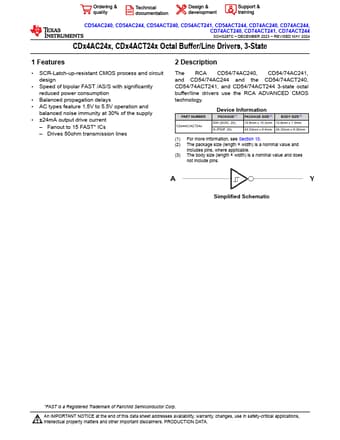

CD54ACT244 Datasheet Preview Page 2 CD54ACT244 Datasheet Preview Page 3

Datasheet Details

Part number:

CD54ACT244, CD54AC240

Manufacturer:

Texas Instruments ↗

File Size:

1.33 MB

Description:

Octal buffer/line drivers.

Note:

This datasheet PDF includes multiple part numbers: CD54ACT244, CD54AC240.
Please refer to the document for exact specifications by model.
