CD54HC04F, CD54HC04 Datasheet - Texas Instruments

CD54HC04F Hex Inverter

This device contains six independent inverters. Each gate performs the Boolean function Y = A in positive logic. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) CD74HC04M SOIC (14) 8.70 mm × 3.90 mm CD74HC04E PDIP (14) 19.30 mm × 6.40 mm CD54HC04F CDIP (14) 21.30 mm × 7.60 mm.

CD54HC04F Features

* Buffered inputs

* Wide operating voltage range: 2 V to 6 V

* Wide operating temperature range:

* 55°C to +125°C

* Supports fanout up to 10 LSTTL loads

* Significant power reduction compared to LSTTL logic ICs 2 Applications

* Synchronize inver

CD54HC04-etcTI.pdf

This datasheet PDF includes multiple part numbers: CD54HC04F, CD54HC04. Please refer to the document for exact specifications by model.

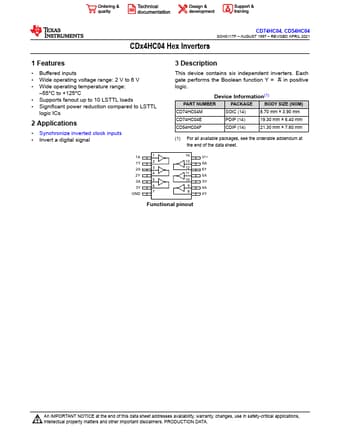

CD54HC04F Datasheet Preview Page 2 CD54HC04F Datasheet Preview Page 3

Datasheet Details

Part number:

CD54HC04F, CD54HC04

Manufacturer:

Texas Instruments ↗

File Size:

1.16 MB

Description:

Hex inverter.

Note:

This datasheet PDF includes multiple part numbers: CD54HC04F, CD54HC04.
Please refer to the document for exact specifications by model.
