CD54HC08F Datasheet, Gates, Texas Instruments

CD54HC08F Features

• Gates
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range:
    –55°C to +125°C
• Supports fanout up to

PDF File Details

Part number:

CD54HC08F

Manufacturer:

Texas Instruments ↗

File Size:

1.28MB

Download:

📄 Datasheet

Description:

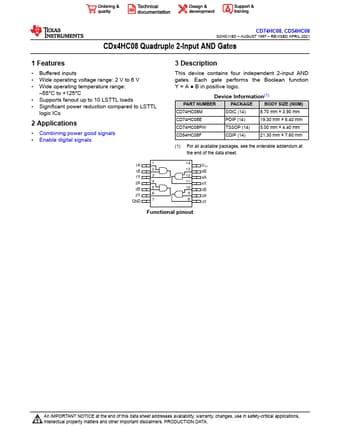

Quadruple 2-input and gates. This device contains four independent 2-input AND gates. Each gate performs the Boolean function Y = A

B in positive logic

CD54HC08F Application

• Applications
• Combining power good signals
• Enable digital signals 3 Description This device contains four independent 2-input A
