CD74HC10M Datasheet, Gates, Texas Instruments

CD74HC10M Features

• Gates
• Buffered inputs
• Wide operating voltage range: 2 V to 6 V
• Wide operating temperature range: -55°C to +125°C
• Supports fanout up to 10 LSTTL loads <

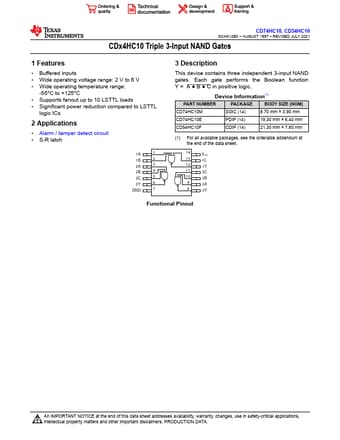

PDF File Details

Part number:

CD74HC10M

Manufacturer:

Texas Instruments ↗

File Size:

1.07MB

Download:

📄 Datasheet

Description:

Triple 3-input nand gates. This device contains three independent 3-input NAND gates. Each gate performs the Boolean function Y = A

B

C in

CD74HC10M Application

• Applications
• Alarm / tamper detect circuit
• S-R latch 1A 1 1B 2 2A 3 2B 4 2C 5 2Y 6 GND 7 3 Description This devi
