CD74HC147

10- to 4-Line Priority Encoder

CD74HC147 Features

* Buffered inputs and outputs

* Typical propagation delay: 13ns at VCC = 5V, CL = 15pF, TA = 25oC

* Fanout (over temperature range)

* Bus driver outputs: 15 LSTTL loads

* Wide operating temperature range: -55oC to 125oC

* Balanced propagation delay and

CD74HC147 General Description

The CDx4HC147 and CD74HCT147 are 9-input priority encoders. These devices provide the 10-line to 4-line priority encoding function by use of the implied decimal “zero.” PART NUMBER CD54HC147 CD74HC147 CD74HCT147 Device Information PACKAGE(1) BODY SIZE (NOM)(2) J (CDIP, 16) 21.34mm × 6.92mm N.

CD74HC147 Datasheet (0.98 MB)

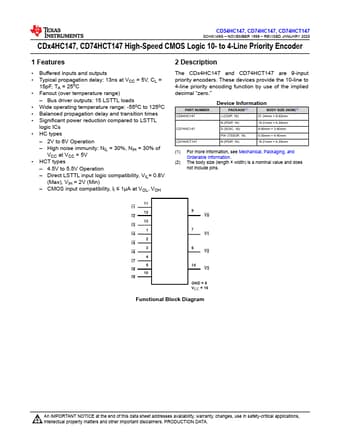

Preview of CD74HC147 PDF

Datasheet Details

Part number:

CD74HC147

Manufacturer:

Texas Instruments ↗

File Size:

0.98 MB

Description:

10- to 4-line priority encoder.
CD54HC147, CD74HC147, CD74HCT147 SCHS149G

* NOVEMBER 1998

* REVISED JANUARY 2025 CDx4HC147, CD74HCT147 High-Speed CMOS Logic 10- to 4-.
