CD74HC374

Octal D-Type Flip-Flop

Texas Instruments

CD74HC374 Features

* Buffered inputs

* Common three-state output enable control

* Three-state outputs

* Bus line driving capability

* Typical propagation delay (clock to Q) = 15 ns at VCC = 5 V, CL = 15 pF, TA = 25℃

* Fanout (over temperature range)

* Standard ou

CD74HC374 General Description

The ’HC374, ’HCT374, ’HC574, and ’HCT574 are octal D-type flip-flops with 3-state outputs and the capability to drive 15 LSTTL loads. The eight edgetriggered flip-flops enter data into their registers on the LOW to HIGH transition of clock (CP). The output enable (OE) controls the 3-state outputs a.

CD74HC374 Datasheet (1.44 MB)

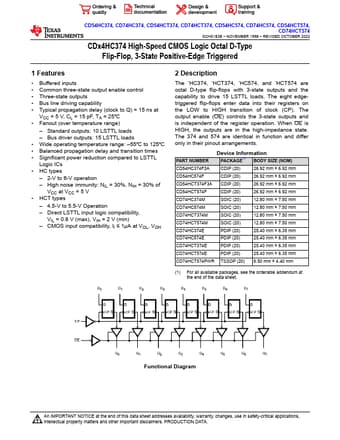

CD74HC374 Datasheet Preview — Preview of CD74HC374 PDF

Datasheet Details

Part number:

CD74HC374

Manufacturer:

Texas Instruments ↗

File Size:

1.44 MB

Description:

Octal d-type flip-flop.
CD54HC374, CD74HC374, CD54HCT374, CD74HCT374, CD54HC574, CD74HC574, CD54HCT574, CD74HCT574 SCHS183E

* NOVEMBER 1998

* REVISED OCTOBER .
