CDC318A - 1-Line To 18-Line Clock Driver

CDC318A Description

CDC318A 1ĆLINE TO 18ĆLINE CLOCK DRIVER WITH I2C CONTROL INTERFACE SCAS614A * SEPTEMBER 1998 * REVISED JUNE 2002 D High-Speed, Low-Ske.
The CDC318A is a high-performance clock buffer designed to distribute high-speed clocks in PC applications.

CDC318A Applications

* D Output Skew, tsk(o), Less Than 250 ps D Pulse Skew, tsk(p), Less Than 500 ps D Supports up to Four Unbuffered SDRAM Dual Inline Memory Modules (DIMMs) D I2C Serial Interface Provides Individual Enable Control for Each Output D Operates at 3.3 V D Distributed VCC and Ground Pins Reduce Switching No

📥 Download Datasheet

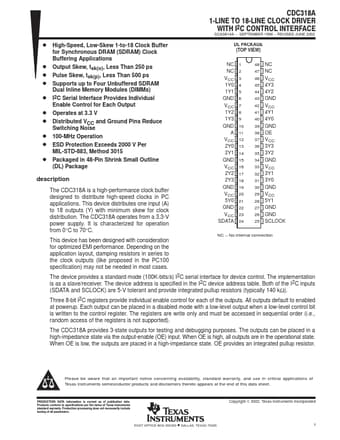

Preview of CDC318A PDF
datasheet Preview Page 2 datasheet Preview Page 3
