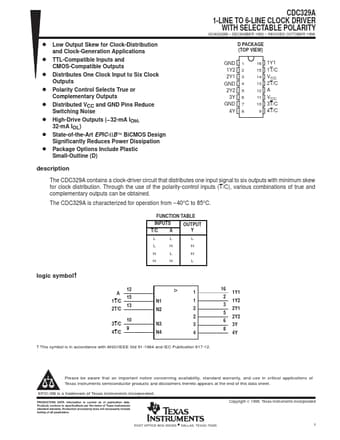

CDC329A - 1-Line To 6-Line Clock Driver

The CDC329A contains a clock-driver circuit that distributes one input signal to six outputs with minimum skew for clock distribution.

Through the use of the polarity-control inputs (T/C), various combinations of true and complementary outputs can be obtained.

The CDC329A is characterized for operat

D Low Output Skew for Clock-Distribution and Clock-Generation Applications D TTL-Compatible Inputs and CMOS-Compatible Outputs D Distributes One Clock Input to Six Clock Outputs D Polarity Control Selects True or Complementary Outputs D Distributed VCC and GND Pins Reduce Switching Noise D High-Drive Outputs ( 32-mA IOH, 32-mA IOL) D State-of-the-Art EPIC-ΙΙB™ BiCMOS Design Significantly Reduces Power Dissipation D Package Options Include Plastic Small-Outline (D) CDC329A 1-LINE TO 6-L
