CDCE949 - Flexible Low Power LVCMOS Clock Generator

Texas Instruments

📥 Download Datasheet

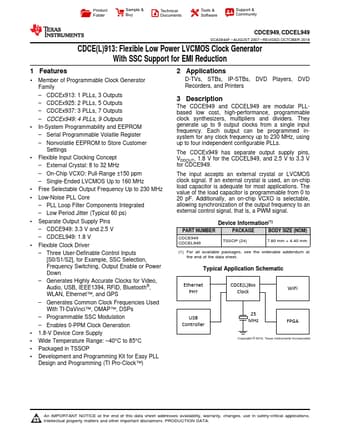

CDCE949 Datasheet Preview — Preview of CDCE949 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CDCE949
Manufacturer	Texas Instruments ↗
File Size	1.17 MB
Description	Flexible Low Power LVCMOS Clock Generator
Datasheet	CDCE949-etcTI.pdf

CDCE949 Product details

Description

The CDCE949 and CDCEL949 are modular PLLbased low cost, high-performance, programmable clock synthesizers, multipliers and dividers.

Features

1 Member of Programmable Clock Generator Family.
CDCEx913: 1 PLLs, 3 Outputs.
CDCEx925: 2 PLLs, 5 Outputs.
CDCEx937: 3 PLLs, 7 Outputs.
CDCEx949: 4 PLLs, 9 Outputs.
In-System Programmability and EEPROM.
Serial Programmable Volatile Register.
Nonvolatile EEPROM to Store Customer Settings.
Flexible Input Clocking Concept.
External Crystal: 8 to 32 MHz.
On-Chip VCXO: Pull-Range ±150 ppm.
