CDCM61001

Low-Jitter Clock Generator

CDCM61001 Features

* 1

* 2 One Crystal/LVCMOS Reference Input Including 24.8832 MHz, 25 MHz, and 26.5625 MHz

* Input Frequency Range: 21.875 MHz to 28.47 MHz

* On-Chip VCO Operates in Frequency Range of 1.75 GHz to 2.05 GHz

* 1x Output Available:

* Pin-Selectable Between LVPECL, LV

CDCM61001 General Description

The CDCM61001 is a highly versatile, low-jitter frequency synthesizer that can generate low-jitter clock outputs, selectable between low-voltage positive emitter coupled logic (LVPECL), low-voltage differential signaling (LVDS), or low-voltage complementary metal oxide semiconductor (LVCMOS) outputs.

CDCM61001 Datasheet (1.21 MB)

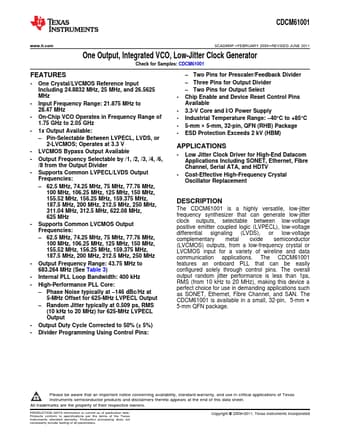

Preview of CDCM61001 PDF

Datasheet Details

Part number:

CDCM61001

Manufacturer:

Texas Instruments ↗

File Size:

1.21 MB

Description:

Low-jitter clock generator.
CDCM61001 www.ti.com SCAS869F

* FEBRUARY 2009

* REVISED JUNE 2011 One Output, Integrated VCO, Low-Jitter Clock Generator Check for S.
