CDCM61004

Low-Jitter Clock Generator

CDCM61004 Features

* 1 One Crystal/LVCMOS Reference Input Including 24.8832 MHz, 25 MHz, and 26.5625 MHz

* Input Frequency Range: 21.875 MHz to 28.47 MHz

* On-Chip VCO Operates in Frequency Range of 1.75 GHz to 2.05 GHz

* 4x Output Available:

* Pin-Selectable Between LVPECL, LVDS

CDCM61004 General Description

The CDCM61004 is a highly versatile, low-jitter frequency synthesizer capable of generating four lowjitter clock outputs, selectable between low-voltage positive emitter coupled logic (LVPECL), low-voltage differential signaling (LVDS), or low-voltage complementary metal oxide semiconductor (LVCMOS).

CDCM61004 Datasheet (1.50 MB)

Preview of CDCM61004 PDF

Datasheet Details

Part number:

CDCM61004

Manufacturer:

Texas Instruments ↗

File Size:

1.50 MB

Description:

Low-jitter clock generator.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CDCM61004 SCAS871H

* FEBRUARY 2009

* REVISED.

📁 Related Datasheet

CDCM61001 - Low-Jitter Clock Generator (Texas Instruments)
CDCM61001 .ti. SCAS869F – FEBRUARY 2009 – REVISED JUNE 2011 One Output, Integrated VCO, Low-Jitter Clock Generator Check for Samples: CDCM6100.

CDCM61002 - Low-Jitter Clock Generator (Texas Instruments)
CDCM61002 .ti. SCAS870F – FEBRUARY 2009 – REVISED JUNE 2011 Two Output, Integrated VCO, Low-Jitter Clock Generator Check for Samples: CDCM6100.

CDCM6208 - Jitter Cleaner (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community CDCM6208 SCAS931G – MAY 2012 – REVISED JANUARY 2018 CDCM6208 2:.

CDCM6208V1F - Jitter Cleaner (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CDCM6208V1F SCAS943 – MAY 2015 CDCM6208V1F 2:8 Clock Generat.

CDCM6208V2G - Jitter Cleaner (Texas Instruments)
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CDCM6208V2G SNAS682 – MARCH 2016 CDCM6208V2G 2:8 Clock Gener.

CDCM1802 - Clock Buffer (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community CDCM1802 SCAS759C – APRIL 2004 – REVISED JULY 2017 CDCM1802 Clo.

CDCM1804 - 1:3 LVPECL CLOCK BUFFER + ADDITIONAL LVCMOS OUTPUT AND PROGRAMMABLE DIVIDER (Texas Instruments)
.ti. CDCM1804 SCAS697E – JULY 2003 – REVISED MAY 2005 1:3 LVPECL CLOCK BUFFER + ADDITIONAL LVCMOS OUTPUT AND PROGRAMMABLE DIVIDER FEATURES • D.

CDCM7005 - 3.3-V High Performance Clock Synchronizer and Jitter Cleaner (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design CDCM7005 SCAS793G – JUNE 2005 – REVISED AUGUS.

TAGS

CDCM61004 Low-Jitter Clock Generator Texas Instruments

Image Gallery

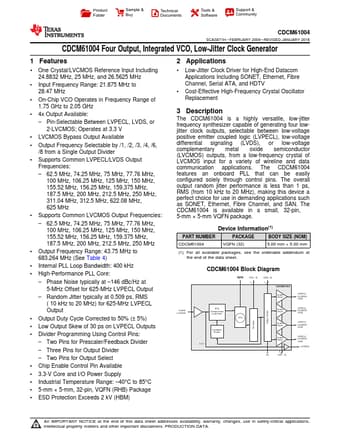

CDCM61004 Datasheet Preview Page 2 CDCM61004 Datasheet Preview Page 3
