CSD18504KCS

Power MOSFETs

CSD18504KCS Features

* 1 Ultra Low Qg and Qgd

* Low Thermal Resistance

* Avalanche Rated

* Logic Level

* Pb Free Terminal Plating

* RoHS Compliant

* Halogen Free

* TO-220 Plastic Package 2 Applications

* DC-DC Conversion

* Secondary Side Sync

CSD18504KCS General Description

This 40 V, 5.5 mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications. Product Summary TA = 25°C VDS Drain-to-Source Voltage Qg Gate Charge Total (10 V) Qgd Gate Charge Gate-to-Drain RDS(on) Drain-to-Source On-Resistance VGS(th) Threshold Voltage T.

CSD18504KCS Datasheet (481.07 KB)

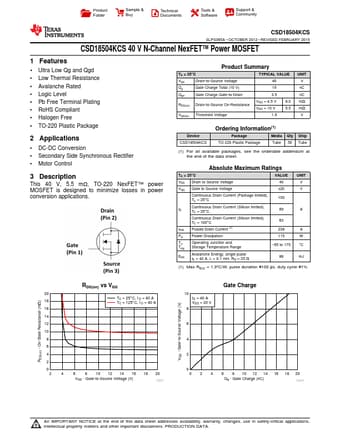

Preview of CSD18504KCS PDF

Datasheet Details

Part number:

CSD18504KCS

Manufacturer:

Texas Instruments ↗

File Size:

481.07 KB

Description:

Power mosfets.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD18504KCS SLPS365A

* OCTOBER 2012

* REVISE.
