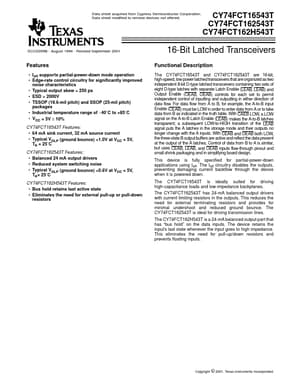

datasheet Preview Page 1 from Datasheet4u.com

CY74FCT162H543T, CY74FCT16543T 16-Bit Latched Transceivers

Data sheet acquired from Cypress Semiconductor Corporation.Data sheet modiﬁed to remove devices not offered.CY74FCT16543T CY74FCT162543T CY74FCT1.
The CY74FCT16543T and CY74FCT162543T are 16-bit, high-speed, low power latched transceivers that are organized as two independent 8-bit D-type latched.

CY74FCT16543T-etcTI.pdf

CY74FCT162H543T Datasheet Preview — This datasheet PDF includes multiple part numbers: CY74FCT162H543T, CY74FCT16543T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CY74FCT162H543T, CY74FCT16543T

Manufacturer:

Texas Instruments ↗

File Size:

1.22 MB

Description:

16-Bit Latched Transceivers

Note:

This datasheet PDF includes multiple part numbers: CY74FCT162H543T, CY74FCT16543T.
Please refer to the document for exact specifications by model.

Features

* Ioff supports partial-power-down mode operation
* Edge-rate control circuitry for signiﬁcantly improved noise characteristics
* Typical output skew < 250 ps
* ESD > 2000V
* TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
* Industrial temperat

Applications

* using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backﬂow through the device when it is powered down. The CY74FCT16543T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The CY74FCT162543T has 24-mA balanced output drivers with current
