CY74FCT162H952T 16-Bit Registered Transceivers

These 16-bit registered transceivers are high-speed, low-power devices. 16-bit operation is achieved by connecting the control lines of the two 8-bit registered transceivers together. For data flow from bus A-to-B, CEAB must be LOW to allow data to be stored when CLKAB transitions from LOW-to-HIGH. T.

CY74FCT162H952T Features

* Ioff supports partial-power-down mode operation

* Edge-rate control circuitry for significantly improved noise characteristics

* Typical output skew < 250 ps

* ESD > 2000V

* TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages

* Industrial temperat

CY74FCT16952T-etcTI.pdf

This datasheet PDF includes multiple part numbers: CY74FCT162H952T, CY74FCT16952T. Please refer to the document for exact specifications by model.

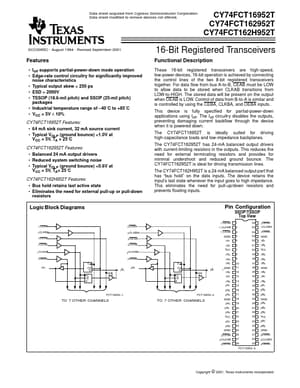

CY74FCT162H952T Datasheet Preview Page 2 CY74FCT162H952T Datasheet Preview Page 3

Datasheet Details

Part number:

CY74FCT162H952T, CY74FCT16952T

Manufacturer:

Texas Instruments ↗

File Size:

1.20 MB

Description:

16-bit registered transceivers.

Note:

This datasheet PDF includes multiple part numbers: CY74FCT162H952T, CY74FCT16952T.
Please refer to the document for exact specifications by model.
