DCP021205 Datasheet, Converter, Texas Instruments

✔ DCP021205 Features

1-kV Isolation (operational): 1-second test
Continuous voltage applied across isolation barrier: 60 VDC / 42.5 VAC
UL1950 recognized component
EN55022 class B EMC

✔ DCP021205 Application

Signal path isolation
Ground loop elimination
Data acquisition
Industrial control and instrumentatio

PDF File Details

Texas Instruments manufacturer logo and representative part image

Part number:

DCP021205

Manufacturer:

Texas Instruments ↗

File Size:

2.17MB

Download:

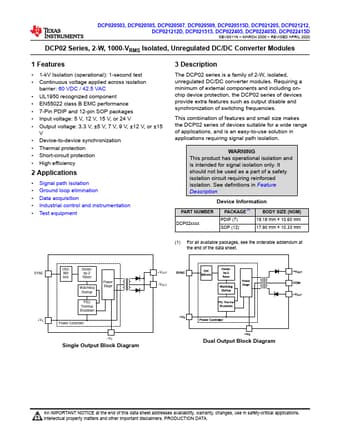

📄 Datasheet

Description:

Unregulated dc/dc converter. The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and in

📥 Download PDF (2.17MB)
