DCP021212D Datasheet, Converter, Texas Instruments

DCP021212D Features

  • Converter
  • 1-kV Isolation (operational): 1-second test
  • Continuous voltage applied across isolation barrier: 60 VDC / 42.5 VAC
  • UL1950 recognized component
  • EN

PDF File Details

Part number:

DCP021212D

Manufacturer:

Texas Instruments ↗

File Size:

2.17MB

Download:

📄 Datasheet

Description:

Unregulated dc/dc converter. The DCP02 series is a family of 2-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and in

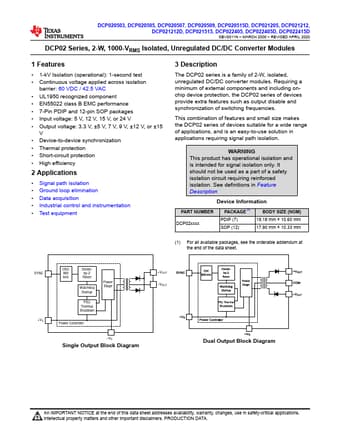

Datasheet Preview: DCP021212D 📥 Download PDF (2.17MB)
Page 2 of DCP021212D Page 3 of DCP021212D

DCP021212D Application

  • Applications
  • Signal path isolation
  • Ground loop elimination
  • Data acquisition
  • Industrial control and instrumen
