DCR010503

Regulated DC/DC Converter

Texas Instruments

DCR010503 Features

* 1-kV isolation (operational): 1-second test

* Continuous voltage applied across isolation barrier: 60 VDC, 42.5 VAC

* UL1950 recognized component

* 10-pin PDIP and 12-pin SOP packages

* Input voltage: 5 V, 12 V, or 24 V

* Output voltage: 3.3 V or 5 V

DCR010503 General Description

The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 1-W nominal, galvanically-isolated output power capability, this range of DC/DC converters offer very low output noise, thermal protection, and high accuracy. This combination of featur.

DCR010503 Datasheet (1.33 MB)

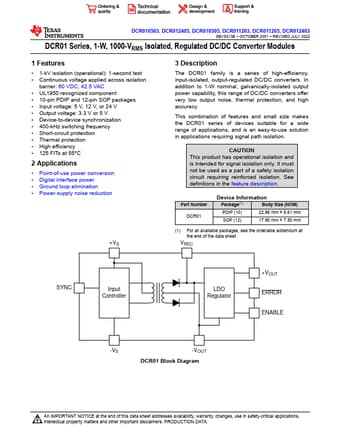

DCR010503 Datasheet Preview — Preview of DCR010503 PDF

Datasheet Details

Part number:

DCR010503

Manufacturer:

Texas Instruments ↗

File Size:

1.33 MB

Description:

Regulated dc/dc converter.
DCR010503, DCR012405, DCR010505, DCR011203, DCR011205, DCR012403 SBVS013E

* OCTOBER 2001

* REVISED JULY 2022 DCR01 Series, 1-W, 1000-V.
