DCR011205

Miniature/ 1W Isolated REGULATED DC/DC CONVERTERS

DCR011205 Features

* q UL1950 RECOGNIZED q PDIP-18, SO-28(1) q 53W/in3 (3.3W/cm3) POWER DENSITY q DEVICE-TO-DEVICE SYNCHRONIZATION q THERMAL PROTECTION q 1000Vrms ISOLATION q 400kHz SWITCHING q 125 FITS AT 55°C q ±10% INPUT RANGE q SHORT-CIRCUIT PROTECTED q 5V, 12V, 24V INPUTS q 3.3V, 5V OUTPUTS q HIGH EFFICIENCY APPLI

DCR011205 General Description

DCR01 family is a series of high-efficiency, inputisolated, output-regulated DC/DC converters. In addition to 1W nominal, galvanically-isolated output power capability, this range of DC/DCs offer very low output noise, thermal protection and high accuracy. The DCR01 family is implemented in standard.

DCR011205 Datasheet (151.83 KB)

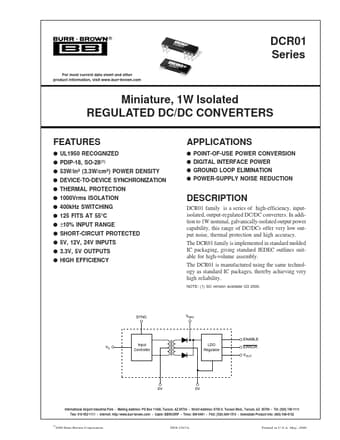

Preview of DCR011205 PDF

Datasheet Details

Part number:

DCR011205

Manufacturer:

Burr-Brown Corporation

File Size:

151.83 KB

Description:

Miniature/ 1w isolated regulated dc/dc converters.
® DCR 01 DCR01 Series DCR 01 For most current data sheet and other product information, visit www.burr-brown.com Miniature, 1W Isolated REGULATED.
