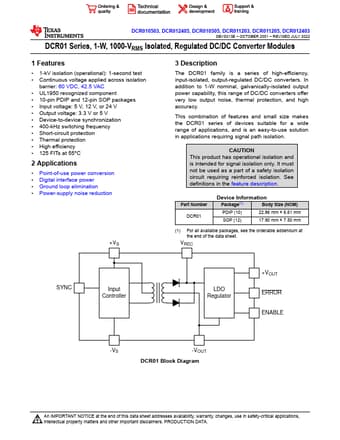

Description
The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters.
Features
- 1-kV isolation (operational): 1-second test.
- Continuous voltage applied across isolation
barrier: 60 VDC, 42.5 VAC.
- UL1950 recognized component.
- 10-pin PDIP and 12-pin SOP packages.
- Input voltage: 5 V, 12 V, or 24 V.
- Output voltage: 3.3 V or 5 V.
- Device-to-device synchronization.
- 400-kHz switching frequency.
- Short-circuit protection.
- Thermal protection.
- High efficiency.
- 125 FITs at 55°C
