DRV10963

Sensorless BLDC Motor Driver

DRV10963 Features

* 1 Proprietary Sensor-less Window-less 180° Sinusoidal Control Scheme

* Input Voltage Range 2.1 to 5.5 V

* 500-mA Output Current

* Low Quiescent Current 15 µA (Typical) at Sleep Mode

* Total Driver H+L Rdson Less than 1.5 Ω

* Current Limit and Short Ci

DRV10963 General Description

The DRV10963 is a three phase sensor-less motor driver with integrated power MOSFETs. It is specifically designed for high efficiency, low noise and low external component count motor drive applications. The proprietary sensor-less window-less 180° sinusoidal control scheme offers ultra-quiet motor .

DRV10963 Datasheet (7.91 MB)

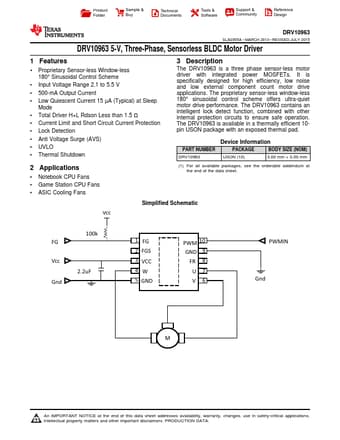

Preview of DRV10963 PDF

Datasheet Details

Part number:

DRV10963

Manufacturer:

Texas Instruments ↗

File Size:

7.91 MB

Description:

Sensorless bldc motor driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DRV10963 SLAS955A

* MARCH 2013
