DRV10975Z, DRV10975 - 12-V 3-Phase Sensorless BLDC Motor Driver

DRV10975Z Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design DRV10975, DRV10975Z SLVSCP2E * JANUAR.
The DRV10975 device is a three-phase sensorless motor driver with integrated power MOSFETs, which can provide continuous drive current up to 1.

DRV10975Z Features

* 1 Input Voltage Range: 6.5 to 18 V
* Total Driver H + L rDS(on): 250 mΩ
* Drive Current: 1.5-A Continuous Winding Current (2-A Peak)
* Sensorless Proprietary Back Electromotive Force (BEMF) Control Scheme
* Continuous Sinusoidal 180° Commutation
* No

DRV10975Z Applications

* Appliance Fan

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DRV10975Z, DRV10975. Please refer to the document for exact specifications by model.

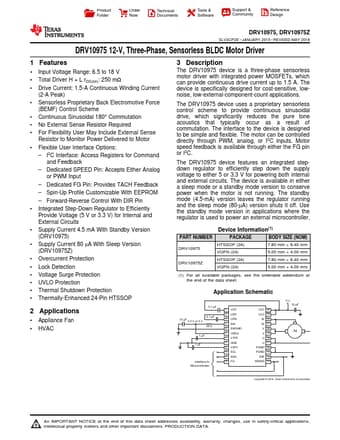

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DRV10975Z, DRV10975
Manufacturer
Texas Instruments ↗
File Size
2.57 MB
Datasheet
DRV10975-etcTI.pdf
Description
12-V 3-Phase Sensorless BLDC Motor Driver
Note
This datasheet PDF includes multiple part numbers: DRV10975Z, DRV10975.
Please refer to the document for exact specifications by model.
