DRV2604

Haptic Driver

DRV2604 Features

* 1 Flexible Haptic/Vibra Driver

* LRA (Linear Resonance Actuator)

* ERM (Eccentric Rotating Mass)

* I2C Controlled Digital Playback Engine

* Internal RAM for Waveform Storage

* Real-Time Playback Mode through I2C

* Smart-Loop Architecture(1)

DRV2604 General Description

The DRV2604 device is designed to provide extremely flexible haptic control of ERM and LRA actuators over a shared I2C compatible bus. This control relieves the host processor from ever generating pulse-width modulated (PWM) drive signals, saving both costly timer interrupts and SDA SCL EN IN/TRIG .

DRV2604 Datasheet (2.55 MB)

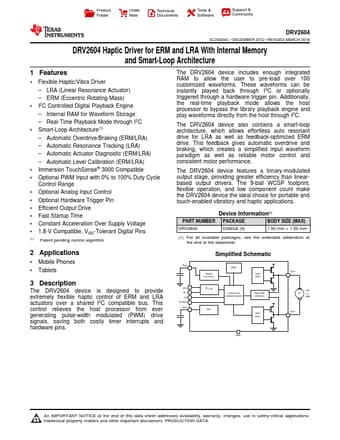

Preview of DRV2604 PDF

Datasheet Details

Part number:

DRV2604

Manufacturer:

Texas Instruments ↗

File Size:

2.55 MB

Description:

Haptic driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community DRV2604 SLOS824C DECEMBER 2012 REVISED MARC.
