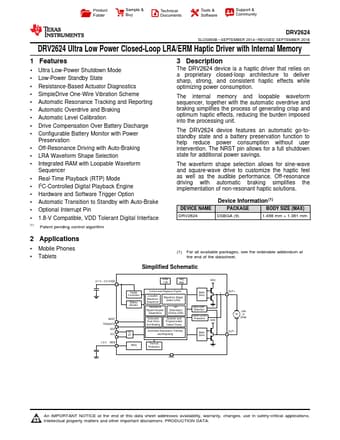

DRV2624 Ultra Low Power Closed-Loop LRA/ERM Haptic Driver

DRV2624 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DRV2624 SLOS893B * SEPTEMBER 2014 * REVISED .
The DRV2624 device is a haptic driver that relies on a proprietary closed-loop architecture to deliver sharp, strong, and consistent haptic effects wh.

DRV2624 Features

* 1 Ultra Low-Power Shutdown Mode
* Low-Power Standby State
* Resistance-Based Actuator Diagnostics
* SimpleDrive One-Wire Vibration Scheme
* Automatic Resonance Tracking and Reporting
* Automatic Overdrive and Braking
* Automatic Level Calibrat

DRV2624 Applications

* Mobile Phones
* Tablets (1) For all available packages, see the orderable addendum at the end of the datasheet. Simplified Schematic 2.7 V ± 5.5 VVDD NRST TRIG/INTZ SDA SCL 1.8 V REG RAM 1 kB Reg Map Supply Correction Battery Monitor I2C I/F REG Control and Playback Engine L
